kit Airshield

ART-ARC3000H-03-FW2(868)- Kit Allarme Dahua 150zone AirShield

SKU: ART-ARC3000H-03-FW2 Categories: , , ,

KIT Allarme Wirless Airshield

  • Supporta 150 periferiche wireless (6 sirene, 64 chiavi remote).
  • Visualizzazione dello stato delle periferiche (forza del segnale, livello della batteria, temperatura, versione del programma).
  • Dual SIM e Standby Singolo, commutazione automatica.
  • Ricarica automatica della rete (ANR).
  • Collegamento video sull’App.
  • Allarme di emergenza SOS.
  • La funzione di hopping di frequenza e la tecnologia di comunicazione bidirezionale garantiscono la stabilità della comunicazione.
  • Aggiornamento cloud e ripristino automatico in caso di fallimento dell’aggiornamento.

Clicca qui e scopri di più su AirShield!

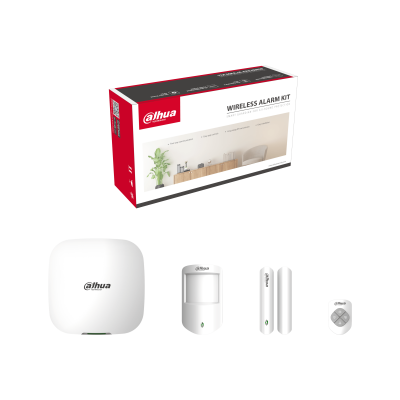

ART-ARC3000H-03-FW2(868) – Kit Allarme Dahua Hub 150 zone AirShield, Rilevatore Pir, Rilevatore Porta e telecomando

Input and Output ART-ARC3000H-03-FW2
Wireless Protection ZoneHub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs)
Port
BuzzerHub: Built-in
ButtonHub: 1 × reset, 1 × power, 1 × AP
Keyfob: 4 (Home, Away, Disarm, and SOS)
Door Detector: 1 × power button
PIR Detector: 1 × power button
Indicator LightHub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction)
Keyfob: 1 × two-color status indicator (green: normal, red: abnormal)
Door Detector: 1 × green alarm indicator
PIR Detector: 1 × green alarm indicator
Storage batteryHub: Built-in lithium battery
Network ModeSingle SIM (GSM:900/1800 MHz, WCDMA:B1/B5/B8, LTE-FDD:B1/B3/B5/B7/B8/B20, LTE-TDD:B38/B40/B41); dual SIM single standby
Network PortHub: 1 × RJ-45 10 M/100 M Ethernet port
Function
Network ProtocolHub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP
Offline CacheHub: Max. 50 entries (ANR)
Power Failure Protection for Configured ParametersHub: Yes
Remote UpdateAll: Cloud update
Video LinkageHub: Yes
SMSHub: Yes (up to 5 phone numbers)
Phone CallHub: Yes (up to 5 phone numbers)
Low Battery AlarmAll: Yes
Tamper AlarmHub: Yes
Door Detector: Yes
PIR Detector: Yes
User ManagementHub: Share function for App users
SearchHub: Searching push messages, device status, and program version. Detecting signal strength.
Keyfob: Signal strength detection
Door Detector: Signal strength detection
PIR Detector: Signal strength detection
Arm and DisarmHub: App; keyfob; schedule
Wireless
Carrier FrequencyAll: 868.0 MHz–868.6 MHz
Communication DistanceHub: Up to 2,000 m (6,561.68 ft) in an open space
Keyfob: Up to 900 m (2,952.76 ft) in an open space
Door Detector: Up to 1,200 m (3,937.01 ft) in an open space
PIR Detector: Up to 1,600 m (5,249.34 ft) in an open space
Communication MechanismAll: Two-way
Encryption ModeAll: AES128
Frequency HoppingAll: Yes
Wi-FiHub: 2.4G
Peripherals
External ZoneDoor Detector: 1-channel dry contact input
Temperature
Measuring Range (Temperature)Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
Measuring Precision (Temperature)Door Detector: ± 1 °C (± 33.8 °F)
PIR Detector: ± 1 °C (± 33.8 °F)
Resolution (Temperature)Door Detector: 1 °C (33.8 °F)
PIR Detector: 1 °C (33.8 °F)
Specification
SensorDoor Detector: Reed switch
PIR Detector: Dual elements low-noise PIR sensor
Test ModeDoor Detector: Yes
PIR Detector: Yes
ScenarioDoor Detector: Non-metal doors
Movement DistanceDoor Detector: < 40 mm (1.57″)
Detection ModePIR Detector: PIR
Detection RangePIR Detector: 12 m (39.37 ft) (90°) with installtion height of 2.2 m (7.21 ft)
Detection SpeedPIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Pet Immunity LevelPIR Detector: ≤ 18 kg (39.68 lb)
White Light Resistance LevelPIR Detector: 6500 lx
Two-way Digital Temperature CompensationPIR Detector: Yes, no attenuation of detection distance in high temperature
SensitivityPIR Detector: 3 levels adjustable
General
Power SupplyHub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional)
Keyfob: CR2032 battery
Door Detector: CR123A battery
PIR Detector: CR123A battery
Battery LifeHub: Storage battery standby for 12 Hours
Keyfob: 5 years
Door Detector: 5 years
PIR Detector: 4 years
Power ConsumptionKeyfob: Max. 100 mW
Door Detector: Max. 125 mW
PIR Detector: Max. 120 mW
Operating environmentHub: –10 °C to +50 °C (+14 °F to +122 °F) (indoor)
Keyfob: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Door Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
PIR Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating HumidityAll: 10%–90% (RH)
Product DimensionsHub: 163.0 mm × 163.0 mm × 32.0 mm (6.42″” × 6.42″” × 1.26″”) (L × W × H)
Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36″” × 1.56″” × 0.59″”) (L × W × H)
Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94″” × 0.82″” × 0.80″”) (L × W × H)
PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09″” × 2.36″” × 1.97″”) (L × W × H)
Packaging DimensionsHub: 219.0 mm × 187.0 mm × 91.0 mm (8.62″” × 7.36″” × 3.58″”) (L × W × H)
Keyfob: 135.0 mm × 98.5 mm × 27.8 mm (5.31″” × 3.88″” × 1.09″”) (L × W × H)
Door Detector: 135.0 mm × 98.5 mm × 27.8 mm (5.31″” × 3.88″” × 1.09″”) (L × W × H)
PIR Detector: 135.0 mm × 98.5 mm × 56.8 mm (5.31″” × 3.88″” × 2.24″”) (L × W × H)
InstallationHub: Wall mount; Desktop
Door Detector: Bracket mount
PIR Detector: Wall mount
Net WeightHub: 0.38 Kg (0.84 lb)
Keyfob: 20 g (0.04 lb)
Door Detector: 70 g (0.15 lb)
PIR Detector: 100 g (0.22 lb)
Gross WeightHub: 0.8 Kg (1.76 lb)
Keyfob: 65 g (0.14 lb)
Door Detector: 115 g (0.25 lb)
PIR Detector: 170 g (0.37 lb)
CasingAll: PC + ABS
CertificationsAll: CE

Clicca qui e scopri di più su AirShield!
