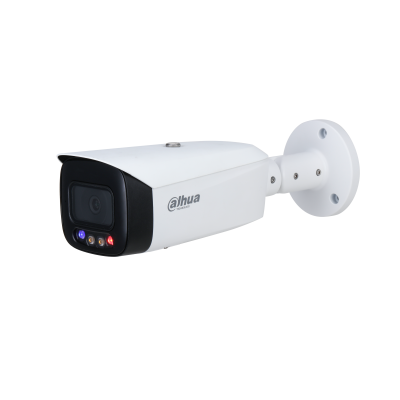

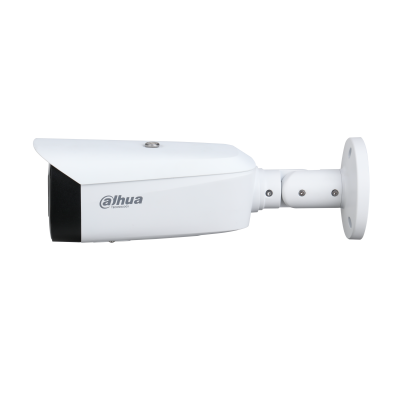

IPC-HFW3449T1-AS-PV – Bullet Network camera 4MP

Telecamera Dahua serie TiOC con deterrenza attiva serie Lite AI WizSense Bullet 4MP, in/out allarme, in/out audio, capsula microfonica integrata, Dahua Technology

-Sensore di immagine CMOS 4MP, 1/2.7”, risoluzione 4Mp, alta sensibilità in condizione di scarsa illuminazione, alta definizione dell’immagine

– Uscite max. 4 MP (2688 × 1520) a 30 fps

– Codec H.265, alta velocità di compressione, bassa velocità di trasmissione

– Illuminatore a luce calda integrato, distanza massima di illuminazione: 40 m

– ROI, SMART H.264 + / H.265 +, codifica flessibile, applicabile a vari ambienti di larghezza di banda e archiviazione

– Rotation mode, WDR, 3D DNR, HLC, BLC, watermark digitale, applicabile a varie scene di monitoraggio

– Rilevamento intelligente: intrusione, tripwire (supporta la classificazione e il rilevamento accurato di veicoli e persone)

– Rilevamento anomalie: rilevamento movimento, manomissione video, cambio scena, rilevamento audio, nessuna scheda SD, scheda SD piena, errore scheda SD, disconnessione dalla rete, conflitto IP, accesso illegale, rilevamento tensione

– Supporta il collegamento dell’allarme audio e della luce. Quando viene attivato un allarme, la fotocamera collega l’allarme sonoro e la luce lampeggiante.

– Supporta il disarmo con un solo tocco. È possibile disinserire gli eventi di uscita di allarme, l’invio di e-mail, audio e luce nel periodo configurato.

– Supporta scheda micro SD da 256Gb

– Microfono integrato

– Allarme: 1 in, 1 out

– Audio: 1 in, 1 out

– Alimentazione 12V DC / POE

– Protezione IP67

– SMD Plus

– Segnalatore visivo luminoso di allarme rosso e blu




Camera – IPC-HFW3449T1-AS-PV serie 3 in 1 Dahua Technology

Integra full color, deterrenza attiva e intelligenza artificiale in un unico dispositivo, serie TiOC.

Image Sensor 1/2.7”4Megapixel progressive CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 Lux @ F1.0
S/N Ratio >56 dB
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.0
Field of View 2.8 mm: Horizontal 103° × Vertical 53° × Diagonal 122°

3.6 mm: Horizontal 81° × Vertical 43° × Diagonal 95°

6 mm: Horizontal 55° × Vertical 30° × Diagonal 63°

Iris Type Fixed
Close Focus Distance 2.8 mm: 1.2 m (3.9 ft)

3.6 mm: 2.1 m (6.9 ft)

6 mm: 4.5 m (14.8 ft)

DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 67.4 m (221.1 ft) 27 m

(88.6 ft)

13.5 m (44.3 ft) 6.7 m

(22.0 ft)

3.6 mm 80.0 m (262.5 ft) 32.0 m (105.0 ft) 16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

6 mm 120.0 m (393.7 ft) 48.0 m (157.5 ft) 24.0 m

(78.7 ft)

12.0 m

(39.4 ft)

Professional, intelligent

IVS (Perimeter Protection) Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate Main stream: 2688 × 1520 @1-25/30 fps

Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-30 fps

Third stream: 1920 × 1080 @1-25/30 fps

Stream Capability 3 streams
Resolution 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas

Audio

Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; AAC; G.723

Alarm

Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)

Network

Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability ONVIF(Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); Dahua Colud; NAS
Browser IE: IE8 and later

Chrome

Firefox

Safari: Safari 12 and later

Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android

Certification

Certification CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC

Power

Power Supply 12V DC /PoE (802.3af)
Power Consumption Basic power consumption: 2W (12V DC); 2.6W (PoE)

Max. power consumption (H.265 + warm light + IVS + sound alarm + red and blue lights flashing alternately): 7.5W (12V DC); 8.8W (PoE)

Environment

Operating Conditions –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67

Structure

Casing Metal + plastic
Dimensions 288.4 mm × 94.4 mm × 84.7 mm

(11.4″ × 3.7″ × 3.3″) (L × W × H)

Net Weight 1.0 kg (2.2 lb)
Gross Weight 1.23 kg (2.7 lb)
